GIN Series
Summary
Technical specifications
Application
Related products
Download
Summary
Gallery
Video
Product characteristics
Product advantages

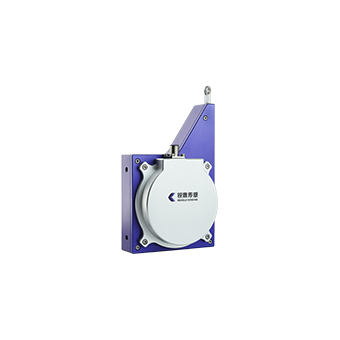

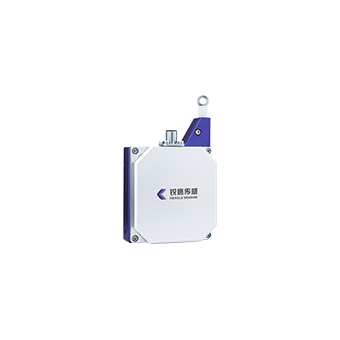

Wire Draw Encoder

Thinner and lighter: 50% thinner compared to the industry  average, making it more compact for installation.

Faster: Unique integrated design eliminates physical connections between the encoder and the cable box, ensuring immediate output  without lag.

More rugged: High integration in the one-piece design enhances durability, making it more resistant to vibrations and suitable for industrial environments.

More precise: Measured output accuracy <±2mm, with a 30% improvement in linearity and resolution.

Low maintenance: Designed with anti-contamination interfaces, sealed components to resist  environmental ingress.

Technical specifications
System
Measurement range 3m / 5m
Resolution 0.002m
Repeatability ≤0.2mm
Linearity ≤±2m
Hysteresis ≤0.4mm
Communication Interface CANopen
Wire acceleration 4m/s2
Diameter of the draw-wire rope 0.6mm
Electrical
Supply Voltage 10V-30V
Environment
Operating Temperature -20℃~85℃
Humidity 95%RH,No Condensing
IP Rating IP 65
Specification
