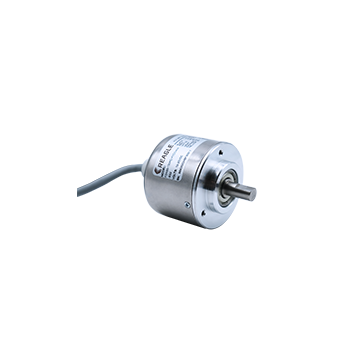

DMN40/50 Series
Summary
Technical specifications
Application
Related products
Download
Summary
Gallery
Video
Product characteristics
Product advantages

Up to 5000 pulses per revolution;

Compact, robust, and stable design;

Configurable number of lines.






Technical specifications
System
Outer Diameter φ40/50mm
Shaft Diameter Output shaft diameter φ 6 / 8 mm; Blind hole diameter φ 6 / 8 / 10 mm
Pulses per revolution 10-5000ppr(Configurable)
Operating Speed DMN40:≤8000rpm; DMN50:≤3000rpm
Maximum response frequency 250kHz
Starting Torque 0.005NM
Electrical
Supply Voltage 5V±5%; 10-30V
Signal output method Push-pull output, NPN collector open circuit output, Voltage output, Linear drive output, RS485
Environment
Temperature Operating:-20℃~85℃ ; Storage:-25℃~85℃
Humidity Operating:35~85% RH ; Storage:35~90% RH
IP Rating IP 65
Shock 1,000m/s 2 , sweeping in the X, Y, Z directions, repeated 3 times.
Vibration 10 ~ 500 Hz, vertical amplitude of 2mm or 150m/s 2 , sweeping in the X, Y, Z directions for 11 minutes per sweep, repeated 3 times.
Specification
3D Model
