KIN60 Series
Summary
Technical specifications
Application
Related products
Download
Summary
Gallery
Video

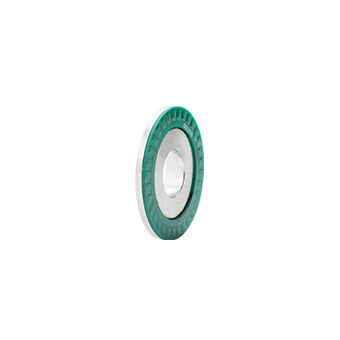

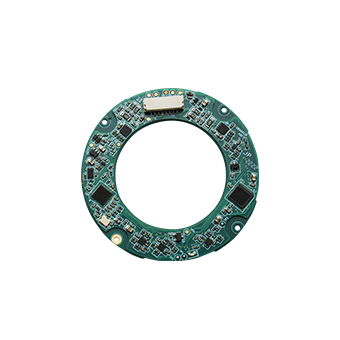

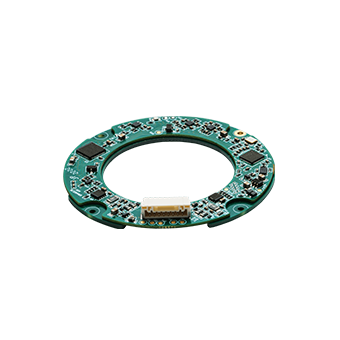

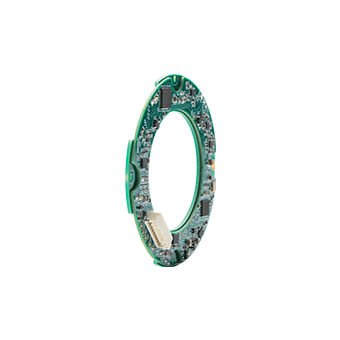

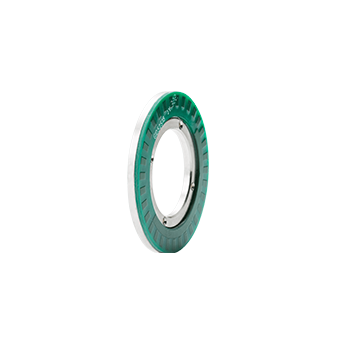

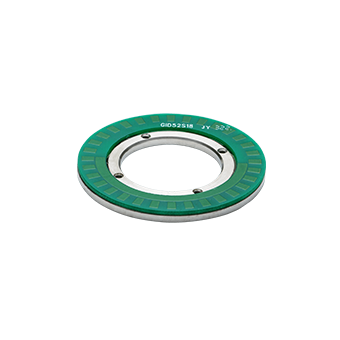

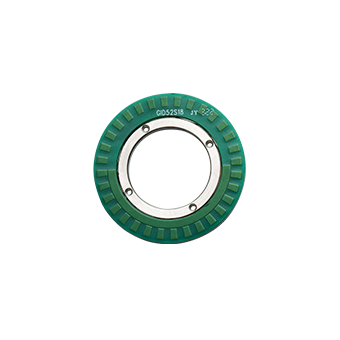

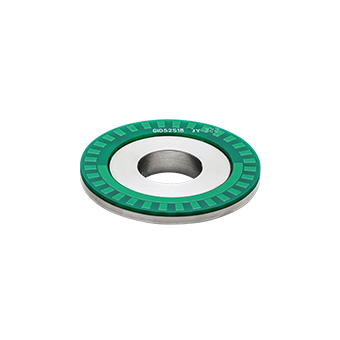

The KIN60 inductive hollow encoder is an absolute rotary encoder, offering precise counting and stable operation. It supports interfaces such as RS485, SPI, and BISS, and is widely used in applications including collaborative robots, gimbals, servos, and machine tools.

Product characteristics

High rel iabi l ity, impervious to contamination,  unaffected by strong magnetic fields;

High precision, with repeatability reaching up to ±3";

Distributed induction read head design, allowing for  greater installation tolerance and reducing the  impact of installation tolerances on accuracy.


Product advantages

Non-contact installation;
Ultra-thin structural design;

Conquer Challenging Environments;

Off-axis Advantages and Multi-Scenario Applications.

Technical specifications
System
Resolution 多圈16位,單圈17—23位
Communication Specification RS485、SSI、BISS-C
Baud Rate RS485:2.5Mbps;SPI:3Mbps;SSI:2Mbps;BISS:10 Mbps
Signal Format Serial Communication Protocol
Electrical
Supply Voltage 5 V ± 5%
Main power supply current consumption (typical) 150mA
Differential Output Level High level≥3.5V; Low level≤1.7V
Insulation Resistance 50MΩ
Edge Change Time 100ns
Environment
EMC Features IEC61000-4
Operating Temperature -40℃~85℃
Humidity IEC61000-4
Shock Impact acceleration 980m/s2 ,11ms; 3 times per direction, total 18 times
Vibration The amplitude is 1.5mm between 10 ~ 55Hz; Acceleration of 98m/s2 between 55~2000 Hz ; 2 hours per axial (XYZ)
Specification
Hollow-shaft Single-Turn Absolute Encoder KIN60-23ST00-SEC0V5&KIN60-23BS20-SEC0V5&KIN60-21SI00-SEC0V5 Specification V1.3
Hollow-shaft Multiturn Encoder KIN60-M16S23ST00-SEC0V5&KIN60-M16S23BS20-SEC0V5&KIN60-M16S19SI00-SEC0V5 Specification V1.2
3D Model
【整機】GRIA60S36感應中空編碼器-GID52S28-多圈(A01)
【整機】GRIA60S36感應中空編碼器-GID52S18-多圈(A00)
